T-CLEAR COMMERCIAL ROOF INSULATION & WATERPROOFING
DURABILITY. SUSTAINABILITY. ENERGY EFFICIENCY

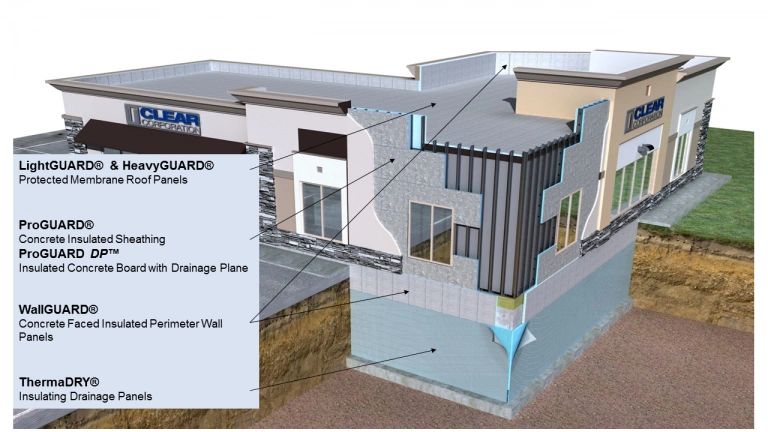

No matter the size, T-Clear offers a full line of CONCRETE BUILDING ENVELOPE PRODUCTS for your projects.
Hello
T-clear roofing systems
Choose either of our Protected Membrane Roof Systems – HeavyGUARD® or LightGUARD® to achieve both insulation and ballast for your low slope roofing needs. Look for our ThermaDRY® Insulating Drainage Panels to protect your concrete walls, and ThermaDRY® Insulating Drainage Panels to move ground water away.
T-Clear LightGUARD® FOR cOMMERCIAL LOW-SLOPE PROTECTED MEMBR
LIGHTGUARD®
Waterproofing for Low-Slope Protected Membrane Roofs
Waterproofing for Low-Slope Protected Membrane Roofs
LightGUARD panels provide both insulation and heavyweight ballast in one easy step
Waterproofing for Low-Slope Protected Membrane Roofs
Waterproofing for Low-Slope Protected Membrane Roofs
Waterproofing for Low-Slope Protected Membrane Roofs
Panels are composed of 2 or 3 inches of Dow Styrofoam with a 3/8-inch latex-modified concrete topping on a 2’x4′ tongue-and-groove panel, weighing 4.5 lb. per square foot per panel.
Choose a Warranty that Fits Your Budget
Waterproofing for Low-Slope Protected Membrane Roofs
Choose a Warranty that Fits Your Budget
Protect the roof membrane from foot traffic, UV degradation, hail, wind damage, vandalism, thermal cycling and physical abuse
T-Clear HeavyGUARD® FOR COMMERCIAL LOW-SLOPE PROTECTED MEMBR
HEAVYGUARD®
Protect the Commercial Roofing Membrane of Your Choice
Protect the Commercial Roofing Membrane of Your Choice
- HEAVYGUARD® protects the membrane of your choice
- Easy removal and reinstallation of ballast and insulation
- Reusable and recyclable
Protect the Commercial Roofing Membrane of Your Choice
Protect the Commercial Roofing Membrane of Your Choice
Protect the Commercial Roofing Membrane of Your Choice
HeavyGUARD ballasted roof insulation panels are commonly referred to as the “upside-down” roof system or Protected Membrane Roofing (PMR) system.
Reduce Yearly Membrane Maintenance Costs
Protect the Commercial Roofing Membrane of Your Choice
Reduce Yearly Membrane Maintenance Costs
Panels are composed of 2 or 3 inches of Dow Styrofoam with a 15/16-inch latex-modified concrete topping on a 2’x4′ tongue-and-groove panel, weighing 11 lb. per square foot per panel.
ProGUARD® – Non-Structural Concrete Insulated Sheathing
PROGUARD®
R-6.45 up to R-20 Available as Standard Items
R-6.45 up to R-20 Available as Standard Items
PROGUARD® provides continuous insulation and a concrete backerboard substrate in one easy to install step which eliminates multiple trips around the building, therefore saving time and labor.
R-6.45 up to R-20 Available as Standard Items
R-6.45 up to R-20 Available as Standard Items
R-6.45 up to R-20 Available as Standard Items
ProGUARD® Concrete Insulated Sheathing wall panels consist of a lightweight non-structural, impact-resistant concrete backerboard sheet laminated to a continuous layer of rigid insulation providing a wall system that installs faster than conventional building techniques.
Cuts with Carbide-Tipped Circular Saw
R-6.45 up to R-20 Available as Standard Items
Cuts with Carbide-Tipped Circular Saw
ProGUARD® Concrete Insulated Sheathing Panels also provide superior thermal protection with shiplapped edges that eliminate thermal breaks, which meet ASHRAE 90.1 Continuous Insulation requirements. All joints are sealed with acrylic waterproofing and fiberglass mesh, providing an airtight seal.
WallGUARD® – Concrete Faced Insulated Perimeter Wall Panels
WallGUARD®
Provide Finish and Insulation in One Easy Step
Provide Finish and Insulation in One Easy Step
- Protect waterproofing of exposed foundations, knee walls, rim joists and slab edges both below and above grade. The brushed latex modified concrete facing laminated to 2″ or 3″ of DOW Styrofoam® provides for surface protection and insulation in one easy to install step, saving time and labor.
- The latex concrete facing can be field painted with a latex concrete paint to match the buildings facade. WallGUARD can also be used on parapet walls over the waterproofing to insulate and protect.
Provide Finish and Insulation in One Easy Step
Provide Finish and Insulation in One Easy Step
Provide Finish and Insulation in One Easy Step
- T. Clear Corporation is pleased to offer a UV stable rigid PVC cap flashing designed specifically for WallGUARD Concrete Faced Insulated Perimeter Wall Panels.
- The use of PVC results in no thermal bridging so the flashing will not take away from the insulation value of the WallGUARD panels or the wall assembly.
- The PVC design includes a drip edge to keep water from running down the face of the panels as well as providing for an aesthetically pleasing gray color that closely matches the natural color of the concrete facing on the WallGUARD panels.
Use in Retrofit or New Applications
Provide Finish and Insulation in One Easy Step
Use in Retrofit or New Applications
- WallGUARD® insulates and protects areas from just below grade to where your heat lost begins around the exposed area of your building foundation. Around the slab edge or rim joist is an area that can account for 10% or more of your total heat loss. WallGUARD stops that heat loss and provides a durable latex modified concrete finish that can stand up to accidental impact. WallGUARD comes standard in a gray concrete, but can be coated on-site to provide a color or texture match to your exterior design features.
ThermaDRY® – Insulating Drainage Panels
THERMADRY®
Limit Compressive Creep Deformation to Less Than 5% Over 20 years
Provide Predictable Long-Term Insulation Value
- When you need to insulate and protect foundations, T-Clear’s ThermaDRY® Insulating Drainage Panels are the right choice. ThermaDRY panels can also be used for Plaza Decks where pavers or poured concrete can be installed directly on the panels eliminating the need for a costly conventional pedestal system.
- The latex concrete facing can be field painted with a latex concrete paint to match the buildings facade. WallGUARD can also be used on parapet walls over the waterproofing to insulate and protect.
Provide Predictable Long-Term Insulation Value
Limit Compressive Creep Deformation to Less Than 5% Over 20 years
Provide Predictable Long-Term Insulation Value
- ThermaDRY 2’x8′ Insulating Drainage Panels are manufactured using 2″ Dow Styrofoam extruded polystyrene or expanded polystyrene, with one side having vertical and horizontal channels cut into the panel and a factory-applied filter fabric adhered over the channels. The spunbonded geotextile filtration fabric helps prevent soil from entering and clogging the drainage channels.
- This fabric also overlaps the sides and ends of the panels. This prevents the edge channels from being clogged at the panel joints.
Limit Compressive Creep Deformation to Less Than 5% Over 20 years
Limit Compressive Creep Deformation to Less Than 5% Over 20 years
Limit Compressive Creep Deformation to Less Than 5% Over 20 years
- ThermaDRY Insulating drainage panels come in three types – Type 750, Type 1250 and Type 1750. Each can be used to full advantage in varied structures other than basements or foundation walls. They can be used to drain, insulate and protect bridge abutments, retaining walls, earth-sheltered structures, culverts, lagging or forms. Types 1250 and 1750 can also be used for horizontal applications, such as Plaza Decks.
WaterArmor® – Waterproofing Products
WATERARMOR®
High Quality 100% Acrylic Flexible Air and Water Barrier
High Quality 100% Acrylic Flexible Air and Water Barrier
T. Clear Corporation’s WaterArmor AWB is a high quality 100% acrylic flexible air and water barrier. WaterArmor AWB is intended for roller or spray application, but can also be troweled or brushed into place. WaterArmor AWB forms a continuous air and water barrier that protects approved substrates from incidental water damage.
High Quality 100% Acrylic Flexible Air and Water Barrier
High Quality 100% Acrylic Flexible Air and Water Barrier
High Quality 100% Acrylic Flexible Air and Water Barrier
- T-Clear Corporation’s WaterArmor AWB is available in 5 gallon pails
- 100% Coverage
- Doesn’t rattle in the wind
- Vapor permeable with low air infiltration rate
- Used as water barrier and flashing
- This fabric also overlaps the sides and ends of the panels. This prevents the edge channels from being clogged at the panel joints.
High Quality, Flexible Trowel-Grade
High Quality 100% Acrylic Flexible Air and Water Barrier
High Quality, Flexible Trowel-Grade
- T. Clear Corporation’s WaterArmor TG is a high quality, flexible trowel grade joint treatment and water barrier. With a 12-perm rating WaterArmor TG may be applied as a continuous flashing at penetrations and openings.
- Available in 5 gallon pails
- Provides a water barrier continuous flashing at penetrations, panel joints and openings
- Easily applied with trowel or stainless steel taping knife
